ST1200 | 1.2 ton | Vibratory roller
Key Specifications
-Engine:Changchai 192F | Honda GX 390
-Power:8.1 | 9.7 KW
-Operating Weight:1200 KG
-Exciting Force:30 KN
Our Service
-On-time Delivery
-Quality Assurance (one year)
-Customized Services (logo,packaging,graphic)
Product Description

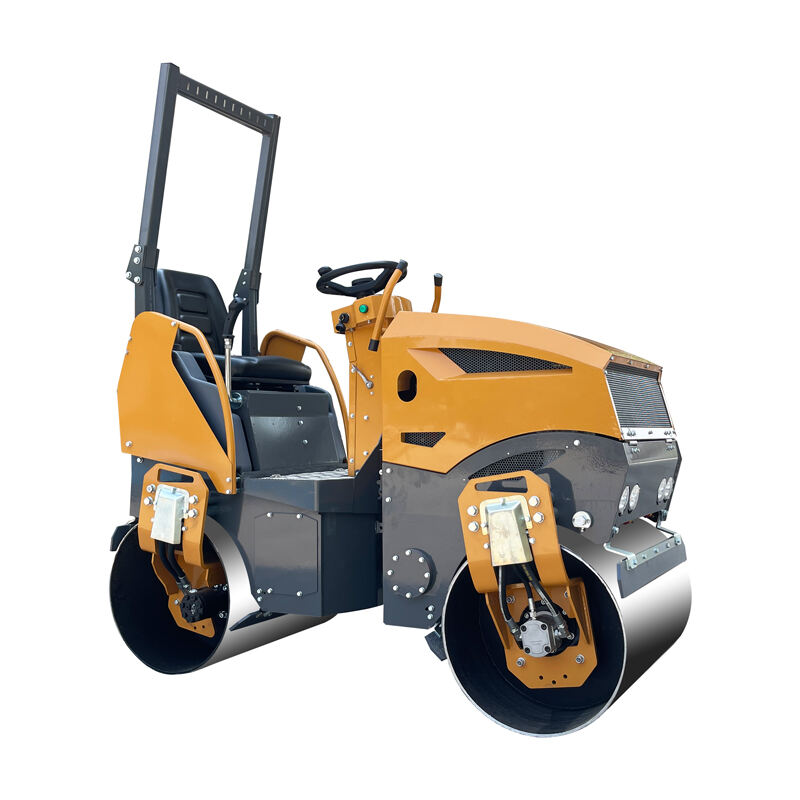

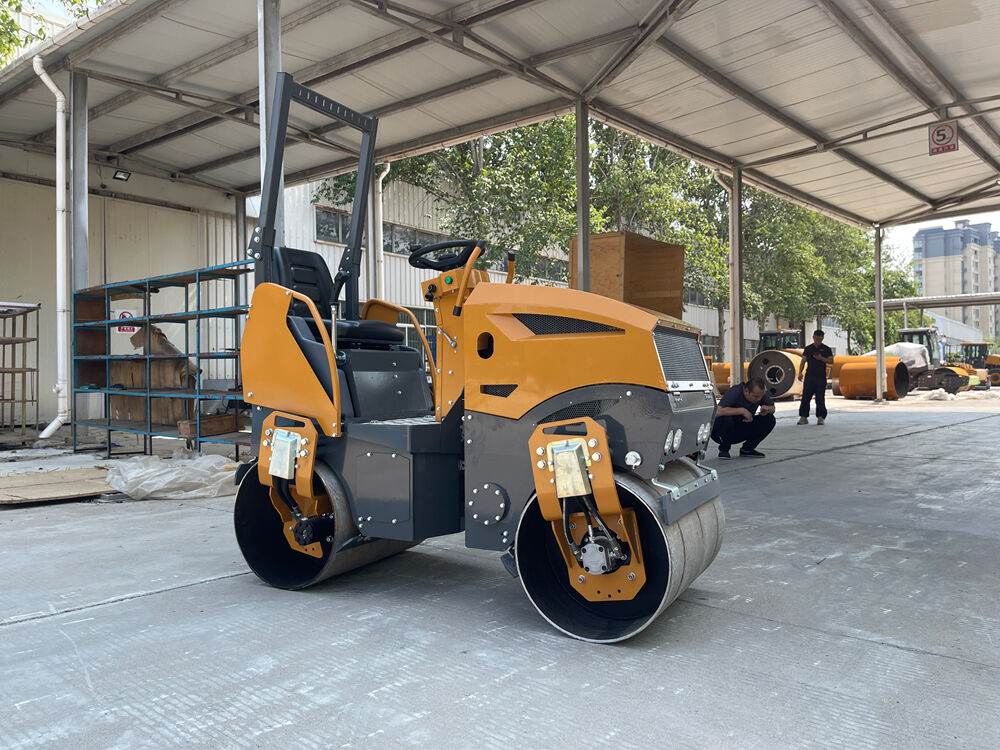

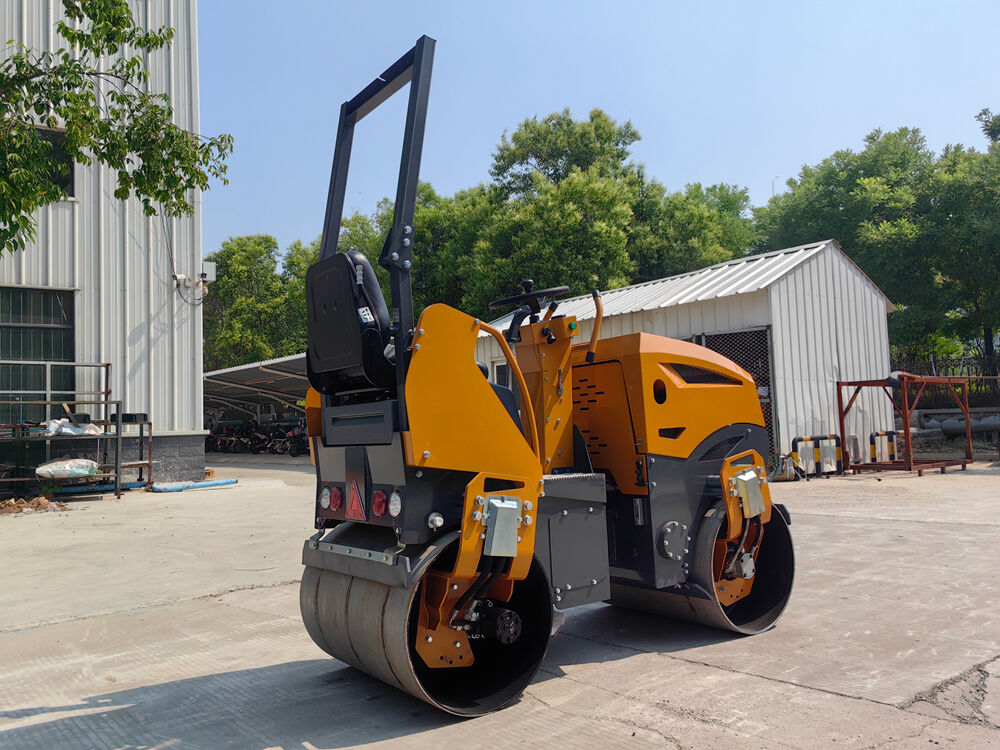

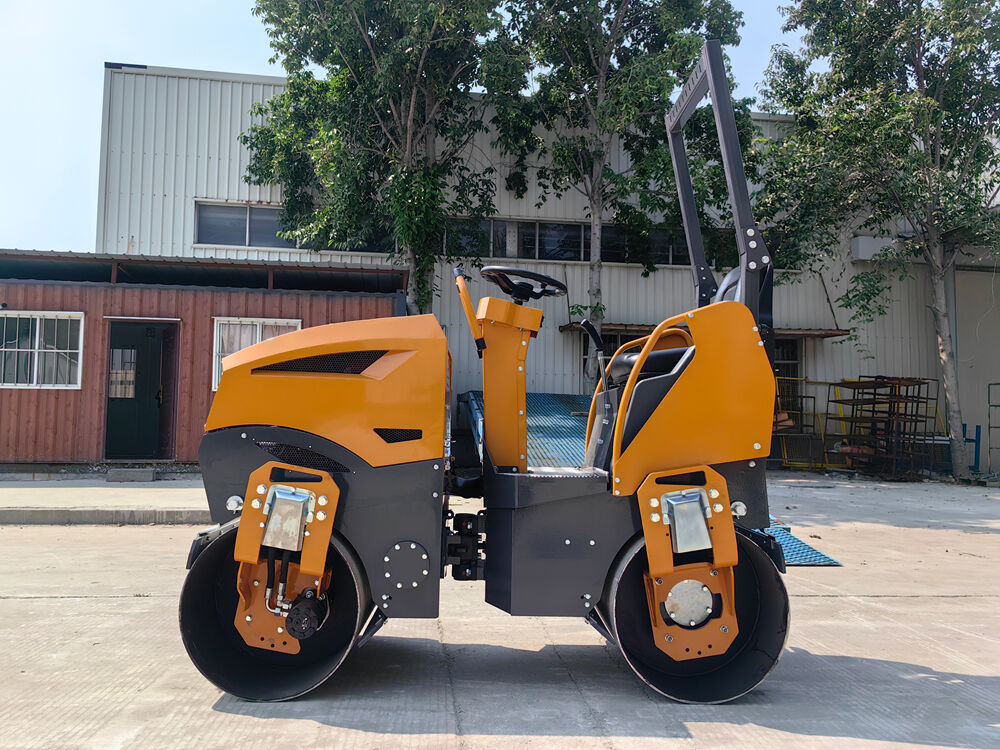

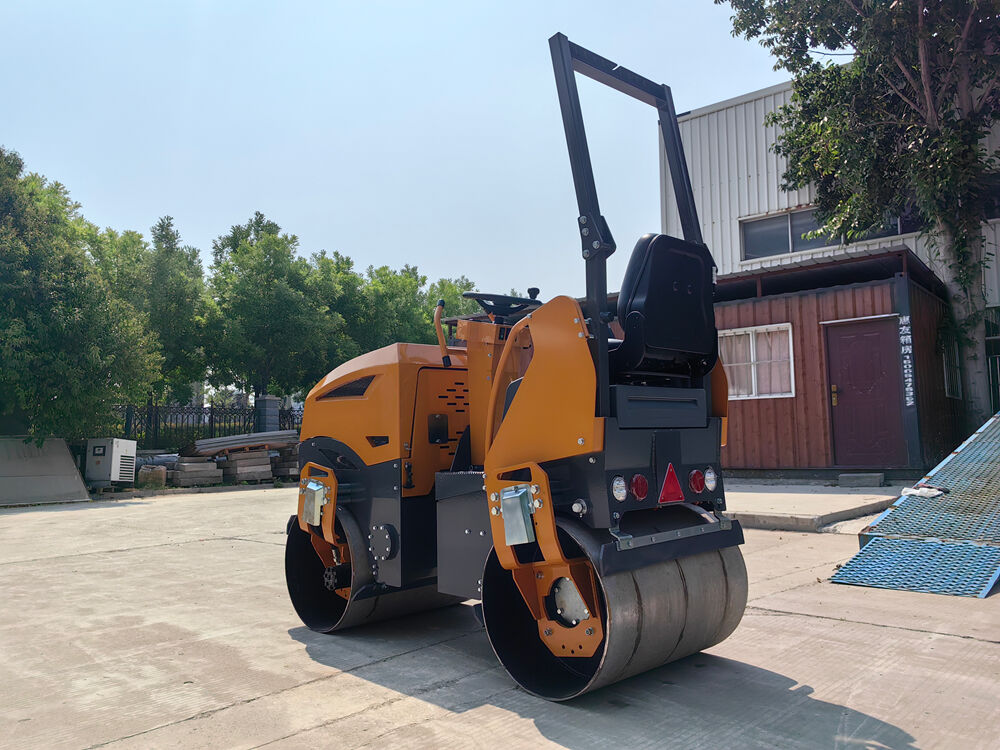

Articulated double drum vibratory roller
FEATURES
- Equipped with famous brand power, qualityassurance, superior performance.
- Eagle-eye body design, wide field of vision,beautiful and generous.
- Imported hydraulic variable pump and quantitative motor, stepless speed change, walking forward and backward.
- The control panel is fully functional, one-key operatiorFront and rear lighting & warning lights, can be constructed at night.
- Ergonomic driving.
- The product has passed the CE certification, and the design of the Red Star Award.
- The steel wheel is equipped with an outline light,which is easy to operate, safe and efficient.
| Model | ST1200 | ||
| Weight | |||
| Operating weight | kg | 1200 | |
| Static line load | n/cm | 69.5/68 | |
| Size | |||
| Working width | mm | 930 | |
| Overall length | mm | 1980/1940 | |
| Overall height | mm | 1540/2125 | |
| Outside the turning radius | mm | 2800 | |
| Drum width | mm | 800 | |
| Drum diameter | mm | 560 | |
| Wheelbase | mm | 1356 | |
| Drive | |||
| Engine brand | CHANGCHAI | HONDA | |
| Engine model | 192F | GX390 | |
| Engine type | DIESEL 4-STROKE | GASOLINE 4-STROKE | |
| Number of cylinders | 1 | ||
| Output power | kw | 8.1 | 9.7 |
| Rotating speed | rpm | 3600 | |
| Electrical Equipment | V | 12 | |
| Drive mode | Variable displacement piston pump continuously variable two-wheel drive | ||
| Walking characteristics | |||
| Speed | km/h | 0–6 | |
| Theoretical climbing ability | % | 30 | |
| Brake | |||
| Working brake | Variable displacement piston pump | ||
| Turn | |||
| Steering method | Hydraulic steering | ||
| Steering system | Swing articulated | ||
| Vibration system | |||
| Vibrating drum | Front | ||
| Drive form | Hydraulic motor | ||
| Vibration frequency | hz | 65 | |
| Vibration amplitude | mm | 0.5 | |
| Exciting force | kn | 30 | |
| Sprinkler system | |||
| Form | Intermittent pressure spray | ||
| Capacity | |||
| Hydraulic oil capacity | L | 22 | |
| Fuel capacity | L | 5.5 | |
| Water tank capacity | L | 70 | |
