ST1300 | 1.3 ton | Vibratory roller
Key Specifications
-Engine:Kubota Z482
-Power:9.8 KW
-Operating Weight:1300 KG
-Exciting Force:30 KN
Our Service
-On-time Delivery
-Quality Assurance (one year)
-Customized Services (logo,packaging,graphic)
Product Description

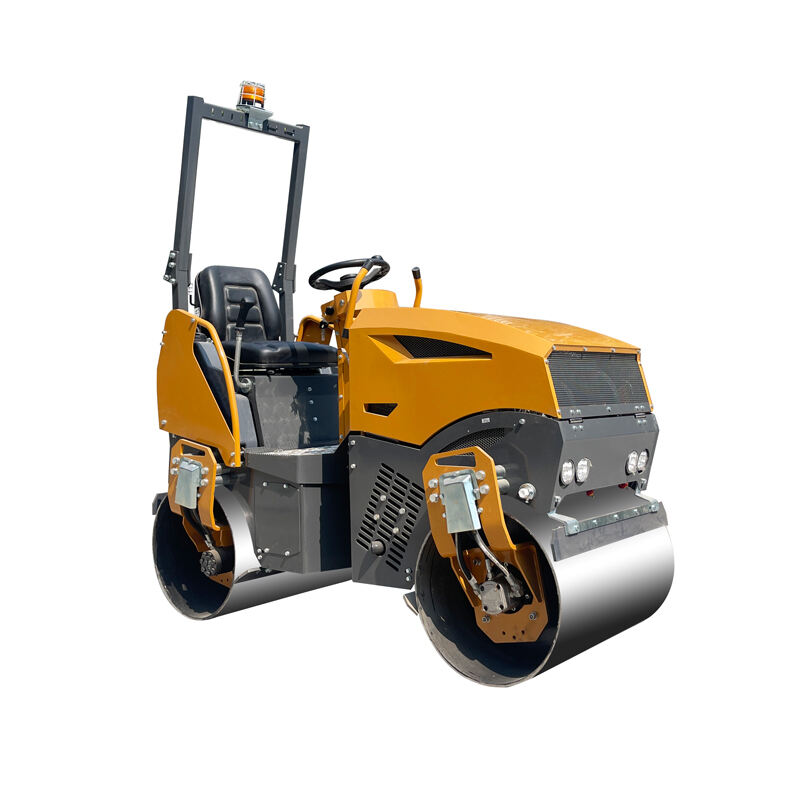

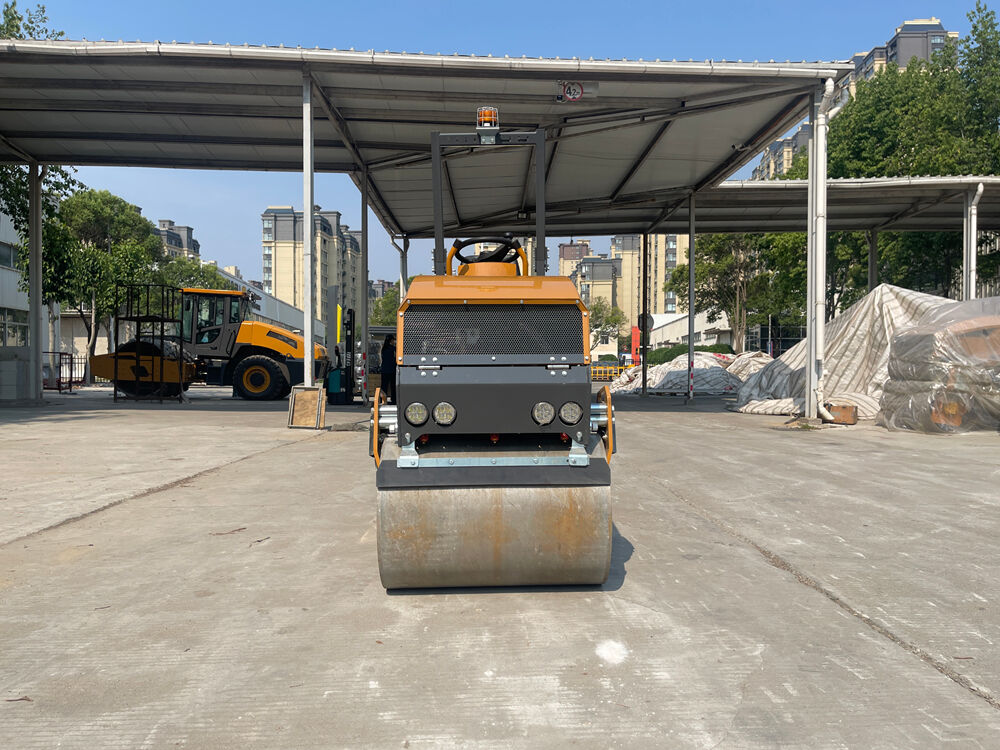

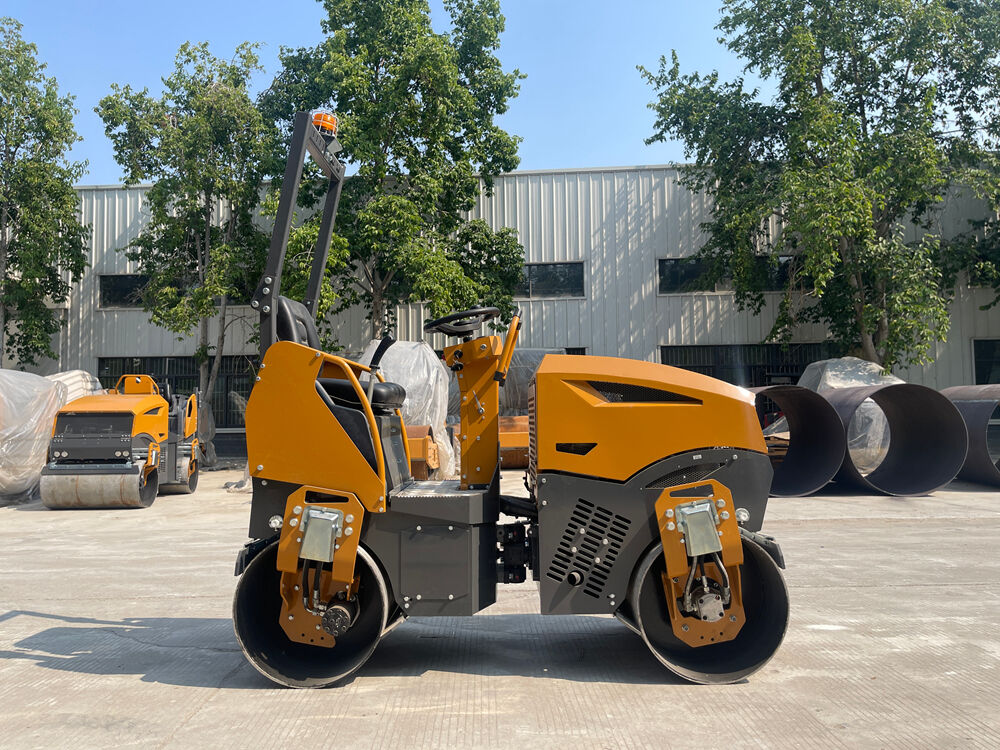

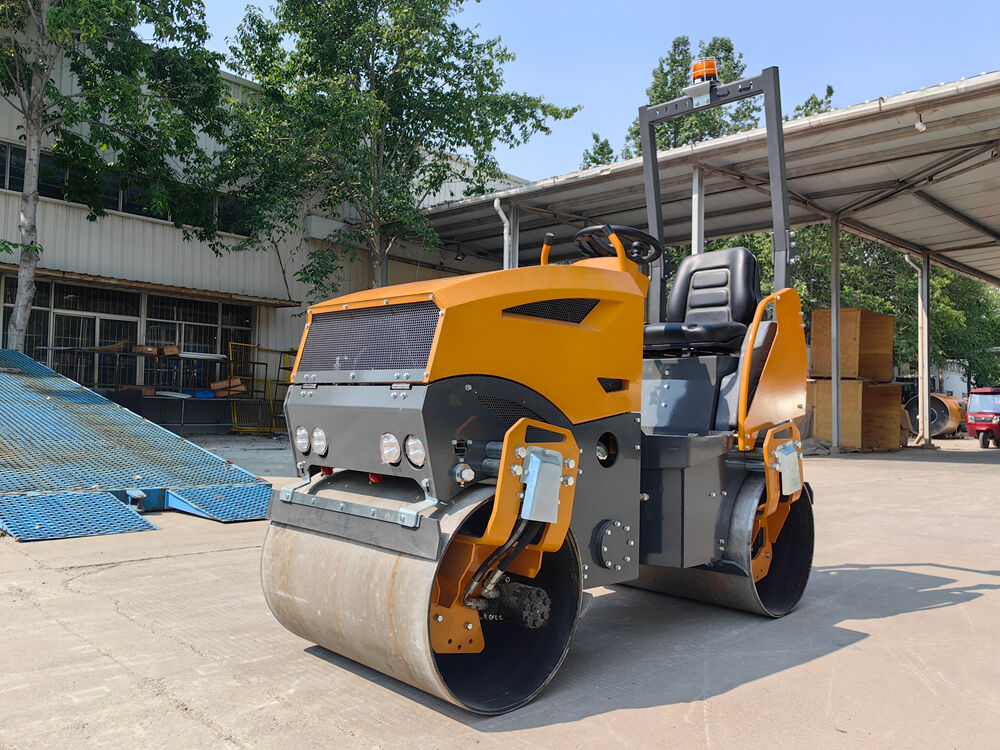

Articulated double drum vibratory roller
FEATURES
- Equipped with famous brand power,quality assurance, superior performance.
- Eagle-eye body design, wide field of vision,beautiful and generous.
- Imported hydraulic variable pump and quantitative motor, stepless speed change, walking forward and backward.
- The control panel is fully functional, one-key operation.
- Front and rear lighting & warning lights, can beconstructed at night.
- Ergonomic driving.
- The product has passed the CE certification, and the design of the Red Star Award.
- The steel wheel is equipped with an outline light,which is easy to operate, safe and efficient.
| Model | ST1300 | |
| Weight | ||
| Operating weight | kg | 1300 |
| Static line load | n/cm | 70 |
| Size | ||
| Working width | mm | 920 |
| Overall length | mm | 2030/1990 |
| Overall height | mm | 1460/2130 |
| Outside the turning radius | mm | 3165 |
| Drum width | mm | 800 |
| Drum diameter | mm | 560 |
| Wheelbase | mm | 1467 |
| Drive | ||
| Engine brand | KUBOTA | |
| Engine model | Z482 | |
| Engine type | Double cylinder water-cooled four stroke diesel engine | |
| Number of cylinders | 2 | |
| Output power | kw | 9.8 |
| Rotating speed | rpm | 3600 |
| Electrical equipment | V | 12 |
| Drive mode | Variable displacement piston pump continuously variable two-wheel drive | |
| Walking characteristics | ||
| Speed | km/h | 0–10 |
| Theoretical climbing ability | % | 30/35 |
| Brake | ||
| Working brake | Variable displacement piston pump | |
| Turn | ||
| Steering method | Hydraulic steering | |
| Steering system | Swing articulated | |
| Vibration system | ||
| Vibrating drum | Front | |
| Drive form | Hydraulic motor | |
| Vibration frequency | hz | 65 |
| Vibration amplitude | mm | 0.5 |
| Exciting force | kn | 30 |
| Sprinkler system | ||
| Form | Intermittent pressure spray | |
| Capacity | ||
| Hydraulic oil capacity | L | 18 |
| Fuel capacity | L | 15 |
| Water tank capacity | L | 70 |
