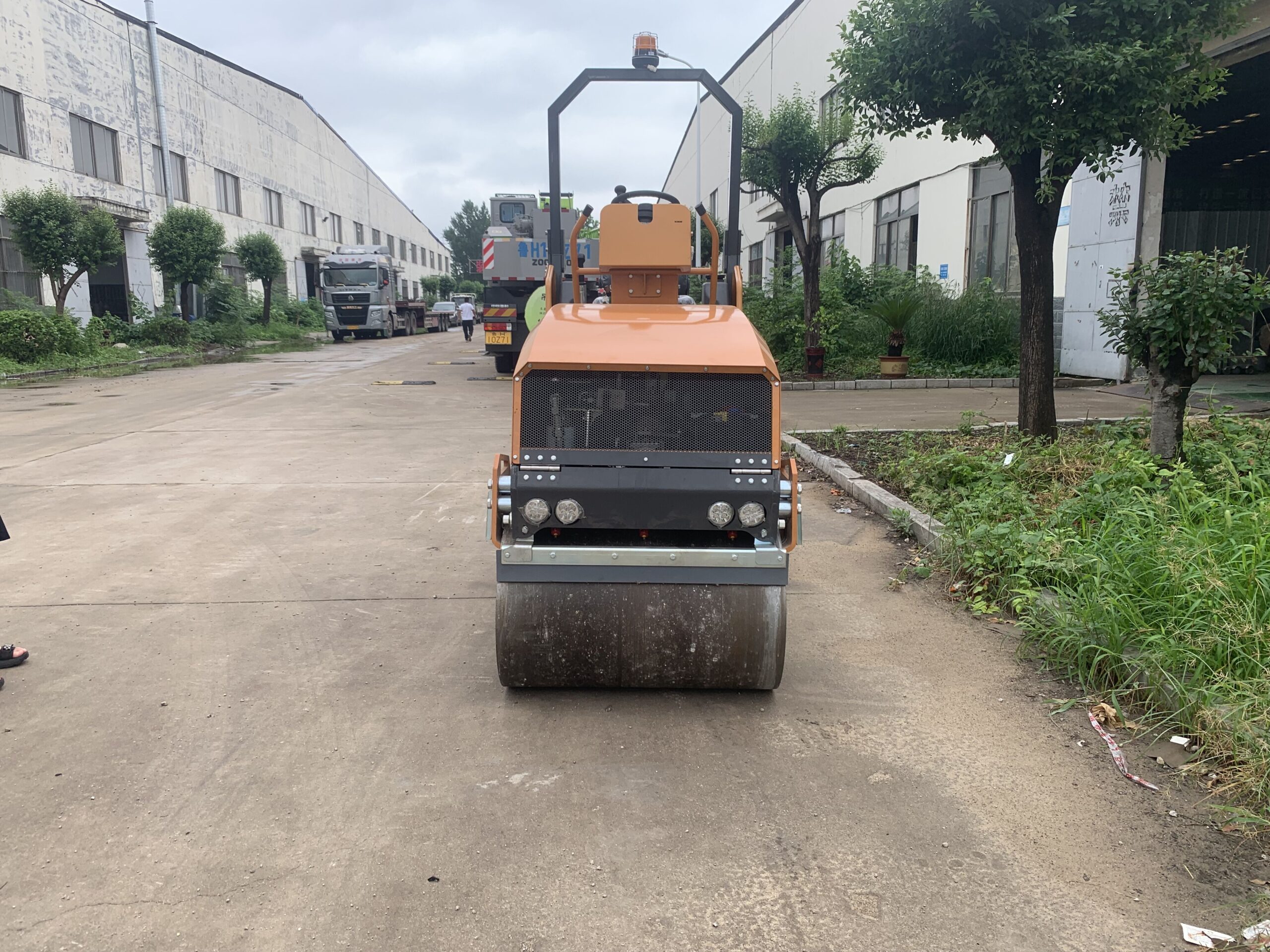

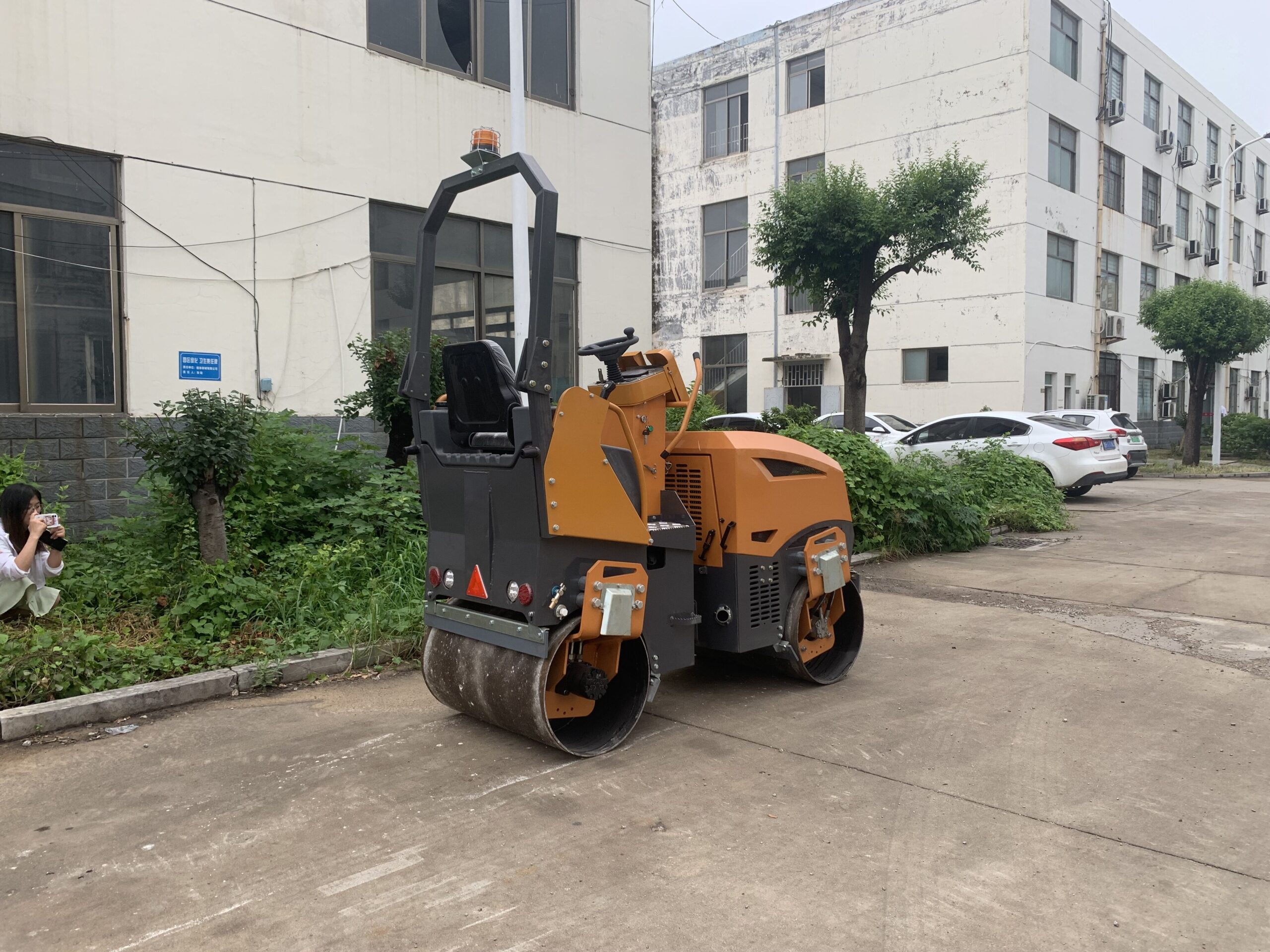

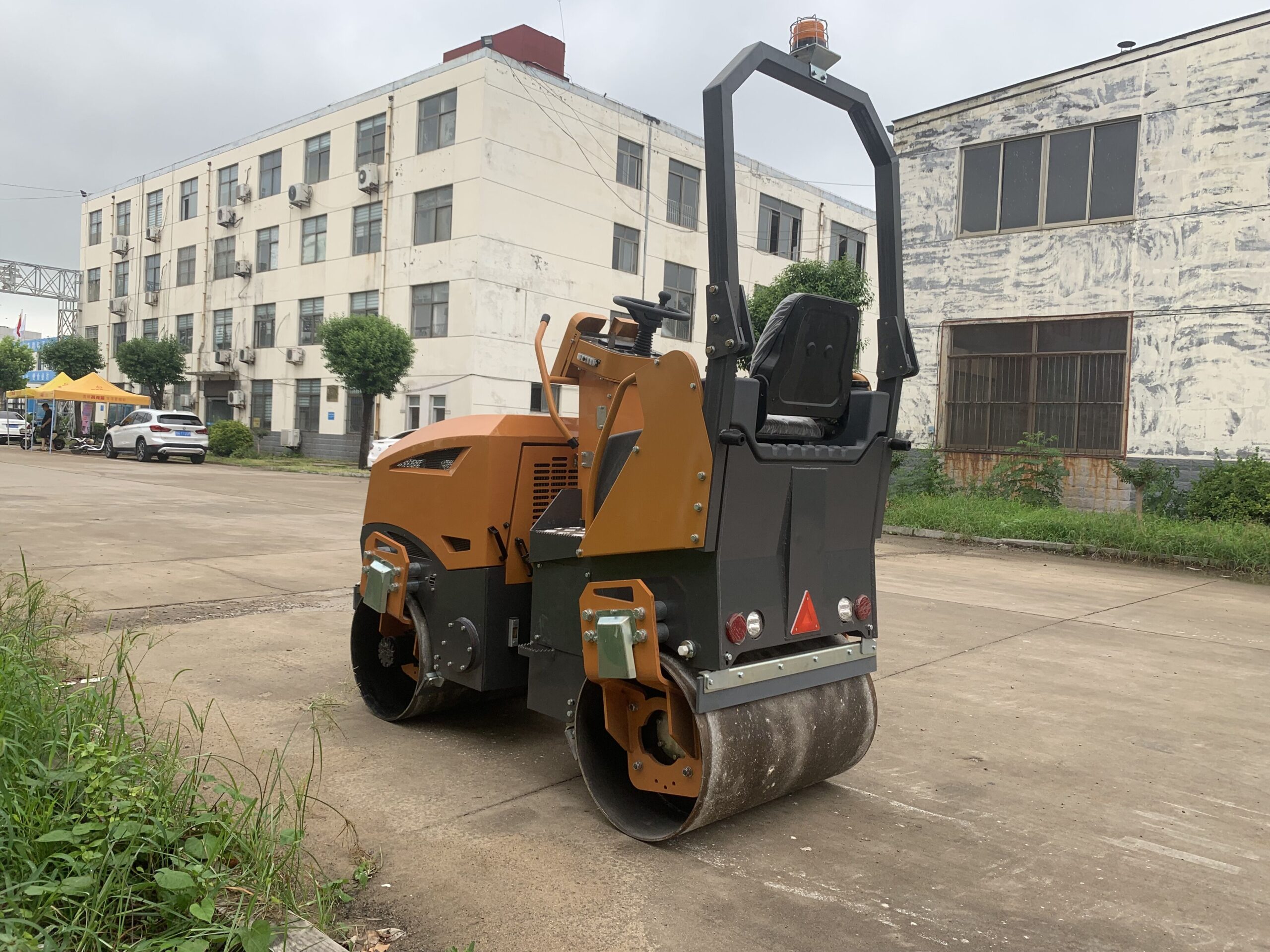

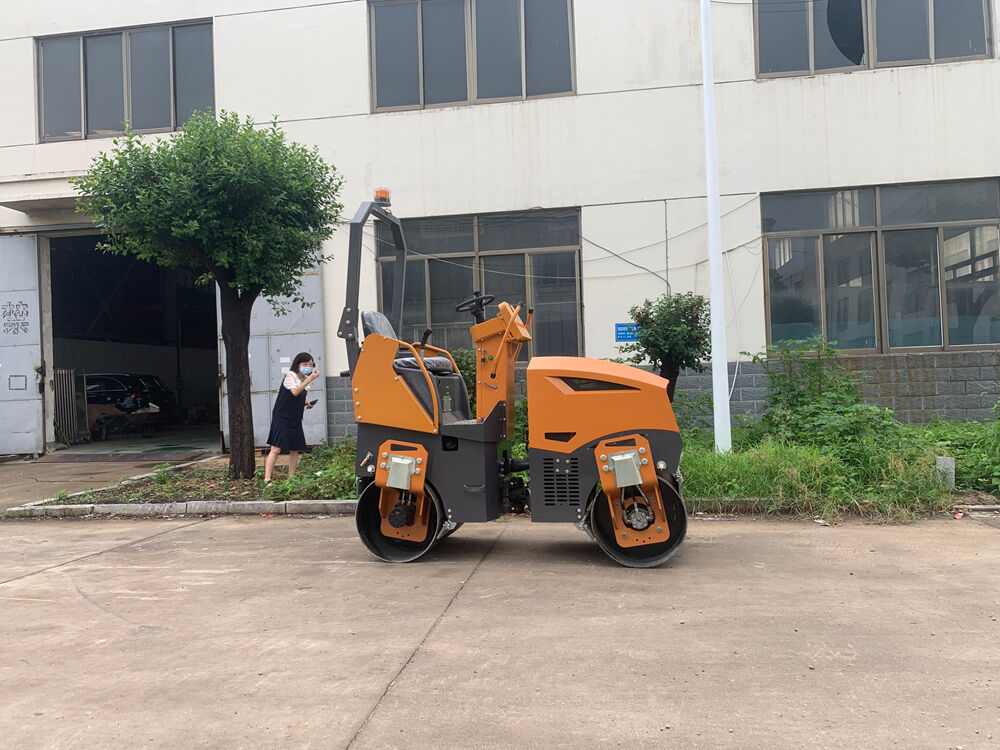

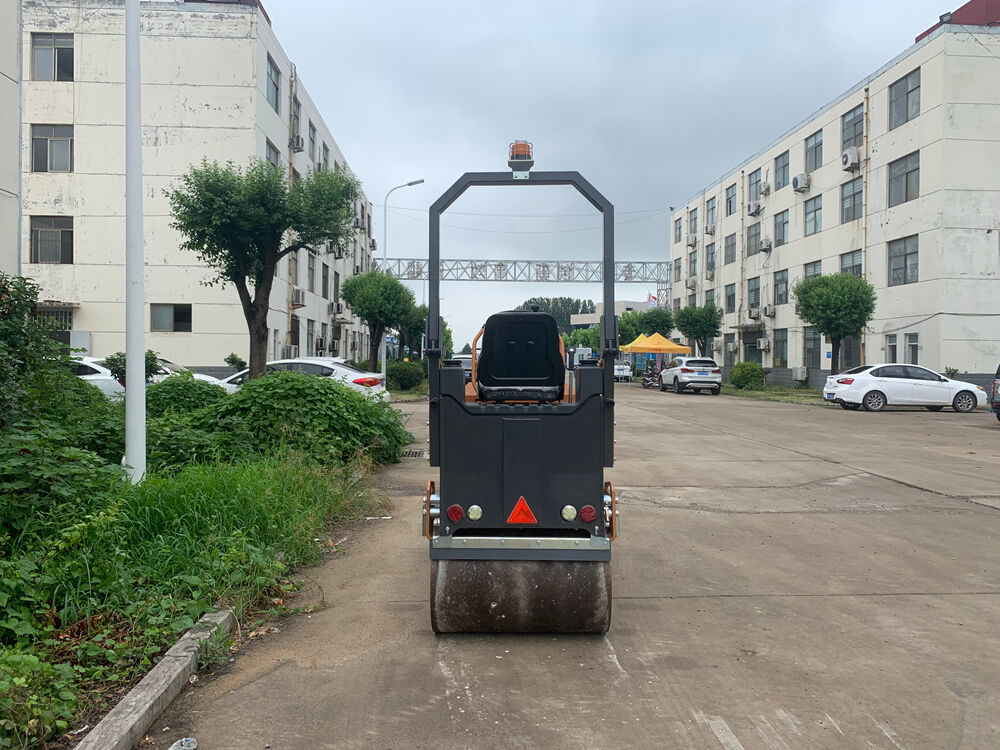

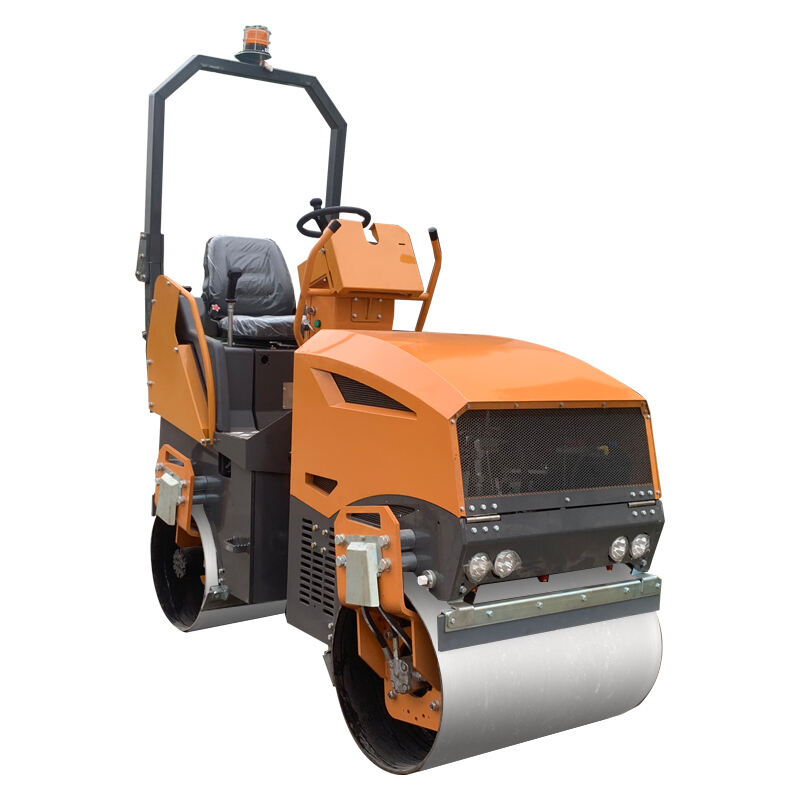

ST1800 | 1.8 ton | Vibratory roller
Key Specifications
-Engine:Yanmar 3TNM72-AFF
-Power:18.5 KW
-Operating Weight:1800 KG
-Exciting Force:30 KN
Our Service
-On-time Delivery
-Quality Assurance (one year)
-Customized Services (logo,packaging,graphic)
Product Description
Articulated double drum vibratory roller
FEATURES
- Equipped with famous brand power, quality assurance, superior performance
- Eagle-eye body design, wide field of vision,beautiful and generous
- lmported hydraulic variable pump and quantitative motor, stepless speed change, walking forward and backward LED Display Dashboard
- Front and rear lighting & warning lights, can be constructed at night
- Ergonomic driving
- The product has passed the CE certification, and the design of the Red Star Award
- The steel wheel is equipped with an outline light,which is easy to operate, safe and efficient
| Model | ST1800 | |
| Weight | ||
| Operating weight | kg | 1800 |
| Static line load | n/cm | 82 |
| Size | ||
| Working width | mm | 1050 |
| Overall length | mm | 2210/2150 |
| Overall height | mm | 1790/2465 |
| Outside the turning radius | mm | 2800/3850 |
| Drum width | mm | 900 |
| Drum diameter | mm | 560 |
| Wheelbase | mm | 1515 |
| Drive | ||
| Engine brand | YANMAR | |
| Engine model | 3TNM72-AFF | |
| Engine type | 4-stroke water-cooled diesel engine | |
| Number of cylinders | 3 | |
| Output Power | kw | 18.5 |
| Rotating speed | rpm | 3600 |
| Electrical Equipment | V | 12 |
| Drive mode | Variable displacement piston pump continuously variable speed two-wheel drive motor in parallel | |
| Walking characteristics | ||
| Speed | km/h | 0-8 |
| Theoretical climbing ability | % | 30/35 |
| Brake | ||
| Working brake | Variable displacement piston pump | |
| Turn | ||
| Steering method | Hydraulic Cylinder Articulated Steering | |
| Steering system | Swing articulated | |
| Vibration system | ||
| Vibrating drum | Forward | |
| Drive form | Hydraulic motor | |
| Vibration frequency | hz | 65 |
| Vibration amplitude | mm | 0.5 |
| Exciting force | kn | 30 |
| Sprinkler system | Intermittent pressure spray | |
| Capacity | ||
| Hydraulic oil capacity | L | 45 |
| Fuel capacity | L | 36 |
| Water tank capacity | L | 160 |
