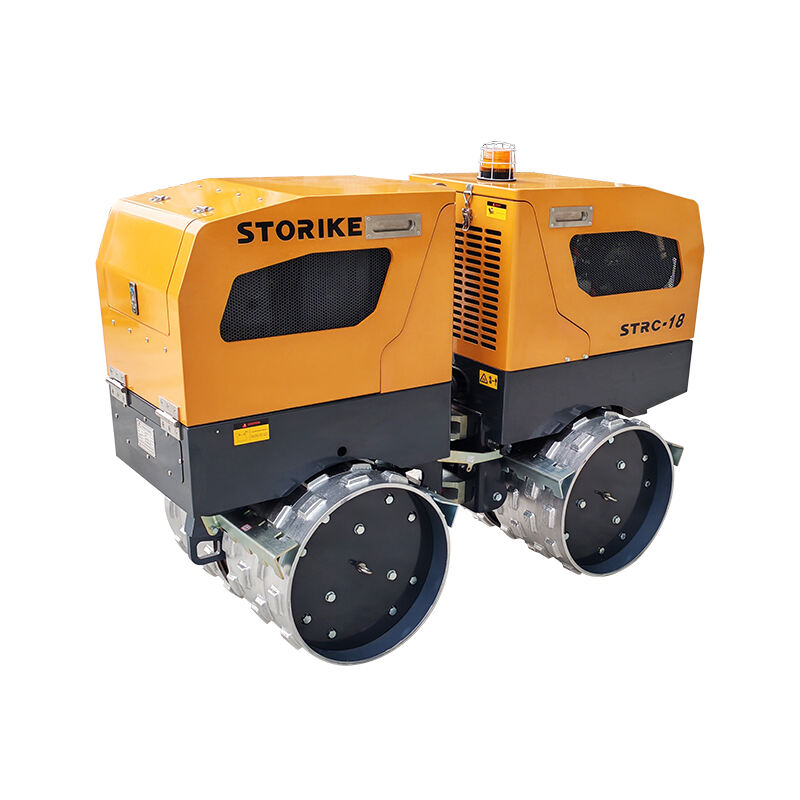

STRC-18 1.8 ton Remote control vibratory roller
Key Specifications
-Engine:Yanmar 3TNV80F-SDSA
-Power:17.8 KW
-Operating Weight:Narrow 1600 | Wide 1800 KG
-Exciting Force:Low 15*2 | High 30*2 KN
Our Service
-On-time Delivery
-Quality Assurance (one year)
-Customized Services (logo,packaging,graphic)
Product Description
Remote control double drum sheep foot vibratory roller
FEATURES
- Equipped with branded power, guaranteed qualityand superior performance.
- Ergonomic streamlined body design,wide field of view,beautiful and elegant.
- Imported hydraulic variable displacement pump and quantitative motor,continuously variable speed, front and rear travel.
- Using wireless remote control technology to achieve remote engine start stop walking, and vibration control.
- Hydraulic steering, easy to operate,flexible,and convenient.
- The product has passed CE certification.
| Model | STRC18 | ||
| Weight | |||
| Operating weight | kg | Narrow1660 | Wide1800 |
| Size | |||
| Working width | mm | Narrow560 | Wide820 |
| Overall length | mm | 1915 | |
| Overall height | mm | 1430 | |
| Turning radius | mm | 1600 inside and 2210 outside | 1470 inside and 2310 outside |
| Drum diameter (including bumps) | mm | 580 | |
| Wheel width | mm | 1005 | |
| Drive | |||
| Engine brand | YANMAR | ||
| Engine model | 3TNV80F-SDSA | ||
| Engine type | 4-stroke water-cooled diesel engine | ||
| Number of cylinders | 3 | ||
| Output power | kw | 17.8 | |
| Rotating speed | rpm | 3000 | |
| Electrical equipment | V | 12 | |
| Engine oil | L | 3.4 | |
| Fuel consumption | g/kwh | 282 | |
| Travel characteristics | |||
| Drive mode | Two-wheel drive motor in parallel | ||
| Speed | km/h | Low speed 1.25/high speed 2.5 | |
| Climbing ability | % | 45 | |
| Brake | |||
| Working brake | Hydraulic parking brake | ||
| Steering | |||
| Steering mode | Hydraulic Cylinder | ||
| Steering system | Articulated | ||
| Steering angle | ยฐ | 30 | |
| Vibration system | |||
| Vibration drum | front +rear | ||
| Drive mode | Hydraulic motor vibratior | ||
| Vibration frequency | hz | 42 | |
| Vibration amplitude | mm | Low 0.7/High 1.4 | |
| Vibration force | kn | Low 15*2/High 30*2 | |
| Capacity | |||
| Hydraulic oil capacity | L | 38.5 | |
| Fuel capacity | L | 25 | |
