SVH50 | 560KG | vibratory roller
Key Specifications
-Engine:Honda GX270 | Changchai Changfa/Kama 178 | Changchai R180
-Power:6.7 | 4.4 | 5.7 KW
-Operating Weight:540 | 540 | 570 KG
-Exciting Force:30 KN
Our Service
-On-time Delivery
-Quality Assurance (one year)
-Customized Services (logo,packaging,graphic)
Product Description

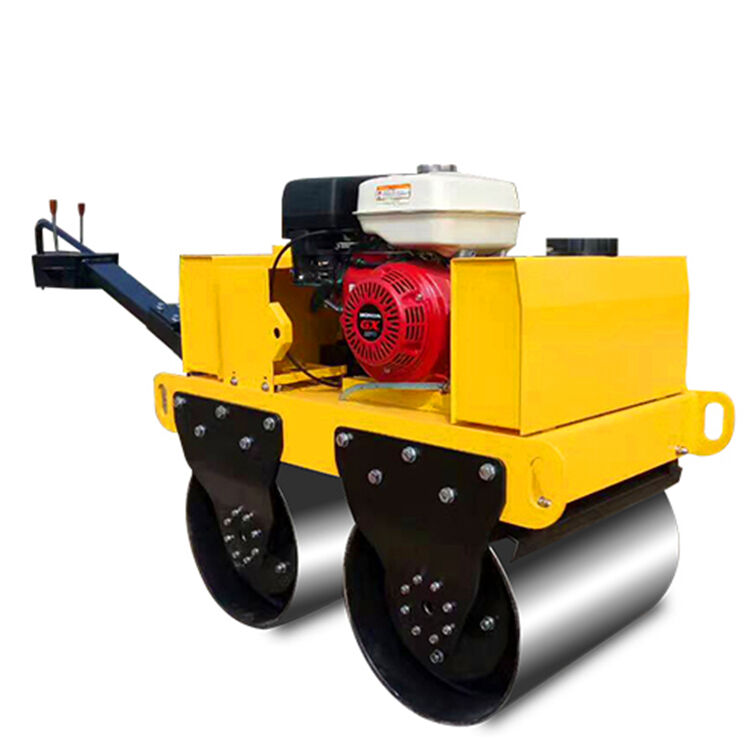

Handheld double drum vibrating roller
FEATURES
- Equipped with famous brand power, quality assurance,superior performance
- Overall spraying, wide field of vision, beautiful and generous
- Small working radius, can work in narrow areas
- Adopt domestic famous brand hydraulic pump, motor,high quality and high stability
- Lengthened armrest, easy to turn, labor-saving
- The transmission adopts Japanese FYH Seiko bearings to ensure the working performance of the whole machine
| Model | SVH50 | SVH50C | SVH50S | |
| Weight | ||||
| Operating weight | kg | 540 | 540 | 570 |
| Static line load | n/cm | 45 | ||
| Size | ||||
| Full width | mm | 780 | ||
| Full length (with armrests flat) | mm | 2480 | ||
| Full height (armrest upright) | mm | 1820 | ||
| Package dimensions | mm | 1300*840*1050 | ||
| Drum width | mm | 600 | ||
| Drum diameter | mm | 426 | ||
| Start up | Recoil hand pull /electric start | |||
| Drive | ||||
| Engine brand | HONDA | CHANGFA/CHANGCHAI/KAMA | CHANGCHAI | |
| Engine model | GX270 | 178 | R180 | |
| Engine type | gasoline four-stroke | Diesel four-stroke | Diesel Evaporative Water Cooling | |
| Number of cylinders | 1 | 1 | 1 | |
| Output power | kw | 6.7 | 4.4 | 5.7 |
| Rotating speed | rpm | 3600 | 3600 | 2600 |
| Walking characteristics | ||||
| Speed | km/h | 0-4 | ||
| Theoretical climbing ability | % | 30 | ||
| Brake | ||||
| Way of walking | Two-way hydraulic chain drive | |||
| Vibration system | ||||
| Vibrating drum | before +after | |||
| vibration frequency | hz | 70 | ||
| Vibration amplitude | mm | 0.6 | ||
| Exciting force | kn | 30 | ||
| Sprinkler system | ||||
| Form | Gravity shower | —- — | ||
| Capacity | ||||
| Fuel capacity | L | 5.9 | 3.5 | 6.5 |
| Lubricant capacity | L | 1.1 | 1.1 | 2 |
| Hydraulic tank capacity | L | 18 | ||
| Water tank capacity | L | 20 | 20 | — —— — — — |
Contact Us
Number:+86-13963746955
Email:alice.qu@storike.com
Things to know before buying:
1. Storike is a factory
2. We have sufficient stock and fast production lines
3. Professional sales team to answer your questions
4. Welcome to visit the factory
5. Visualize the entire production process
6. Stable delivery time and privacy protection for shipping
Things to know after purchasing:
1. 365 days warranty and lifetime after-sales service
2. Provide comprehensive user manuals and guidance
3. Provide various auxiliary equipment and accessories
4. No threshold for recruiting agents
5. Lifetime exclusive customer service with 24-hour one-on-one service
