SVH60M | 600KG | Vibratory roller
Key Specifications
-Engine:Honda GX390 | Changchai 186F
-Power:9.7 | 6.6 KW
-Operating Weight:600 KG
-Exciting Force:30 KN
Our Service
-On-time Delivery
-Quality Assurance (one year)
-Customized Services (logo,packaging,graphic)
Product Description

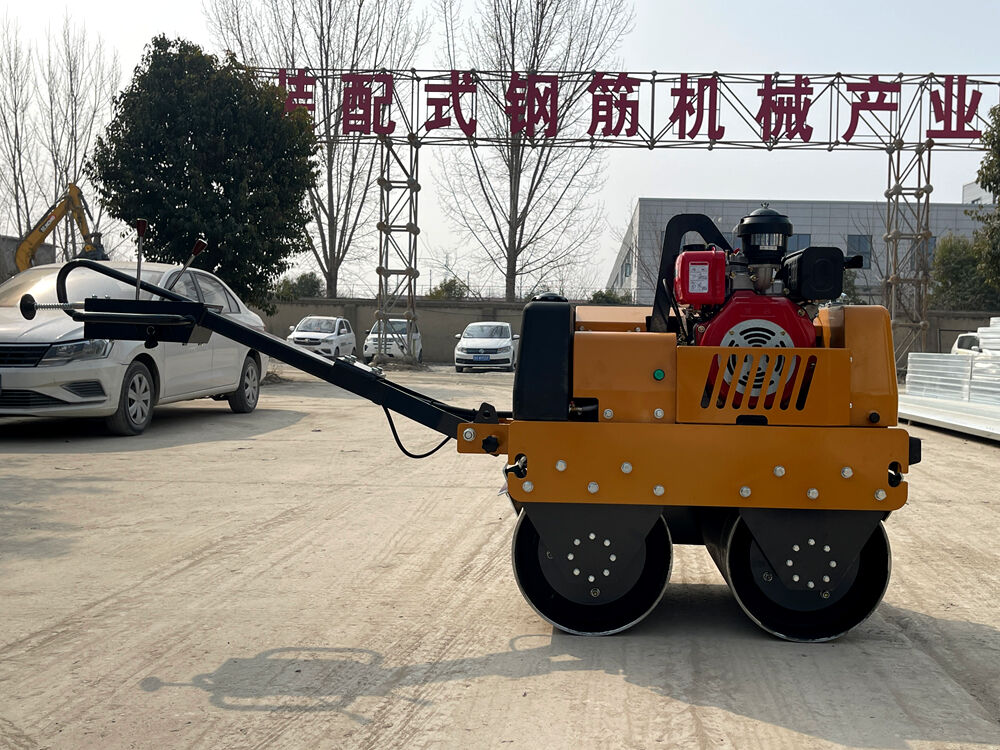

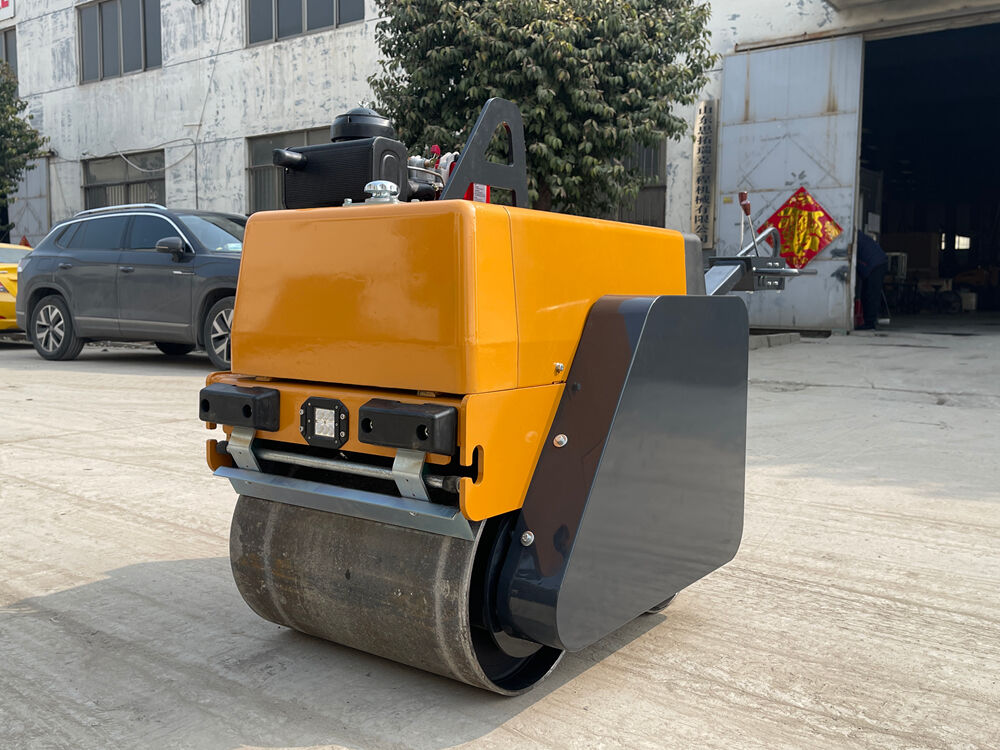

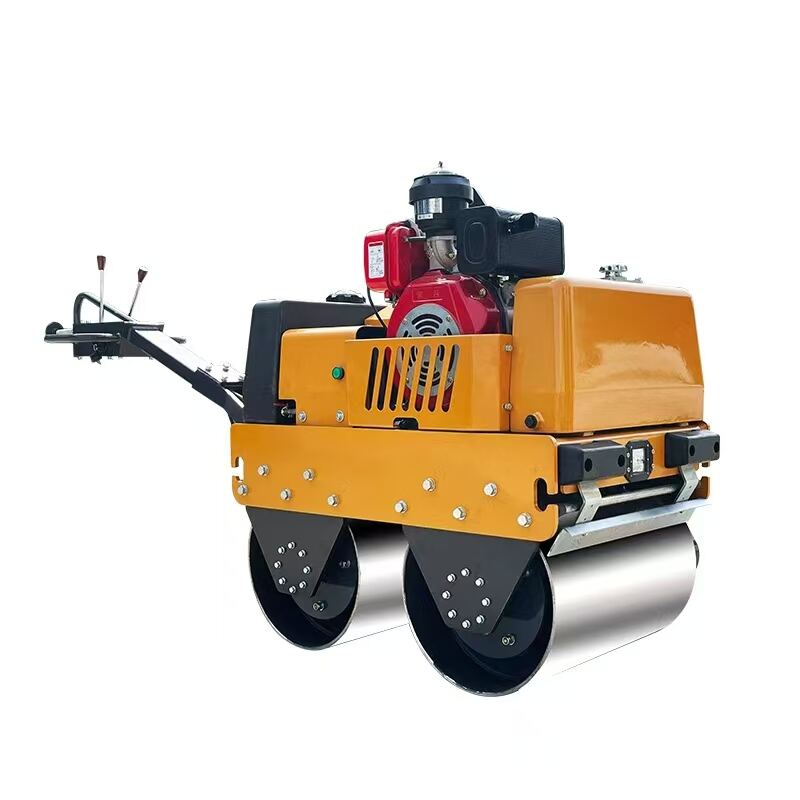

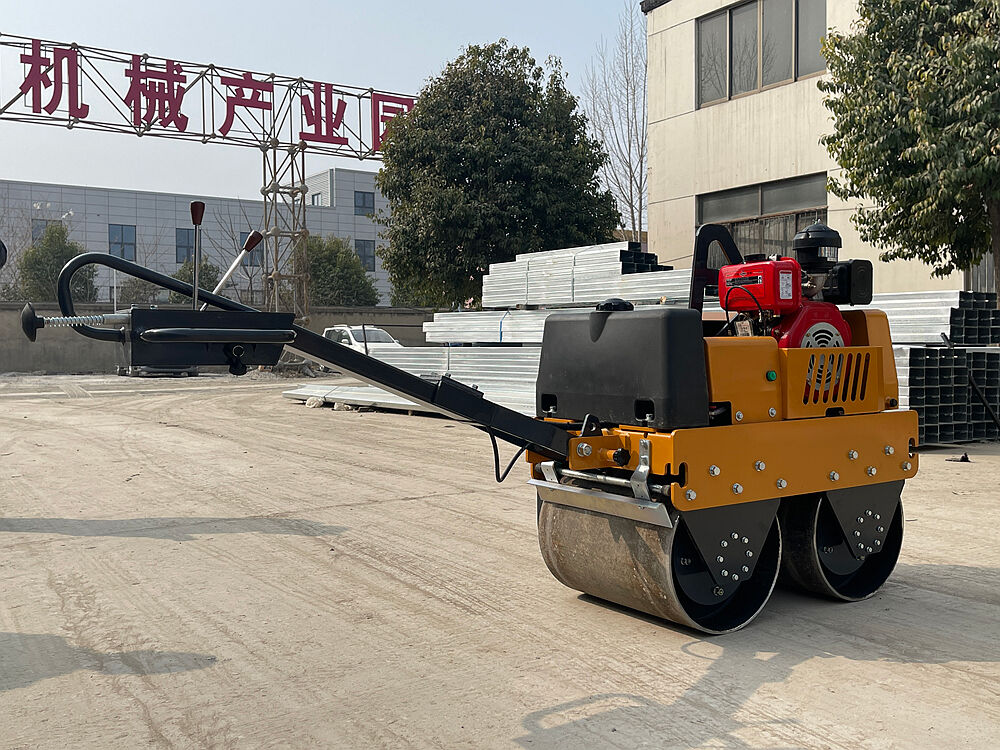

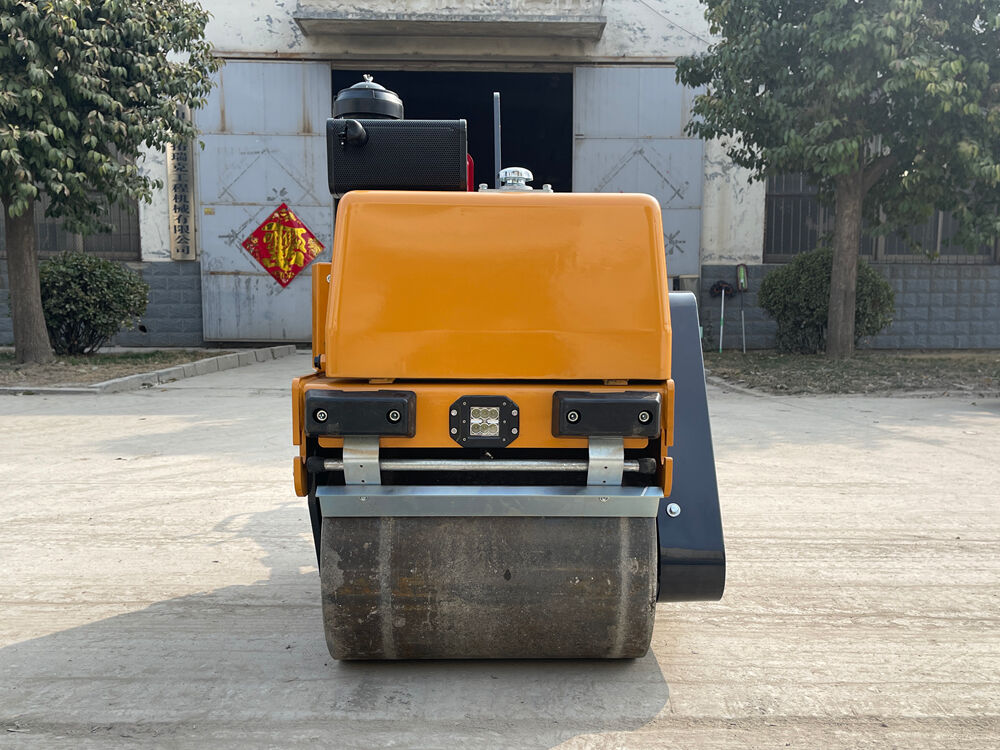

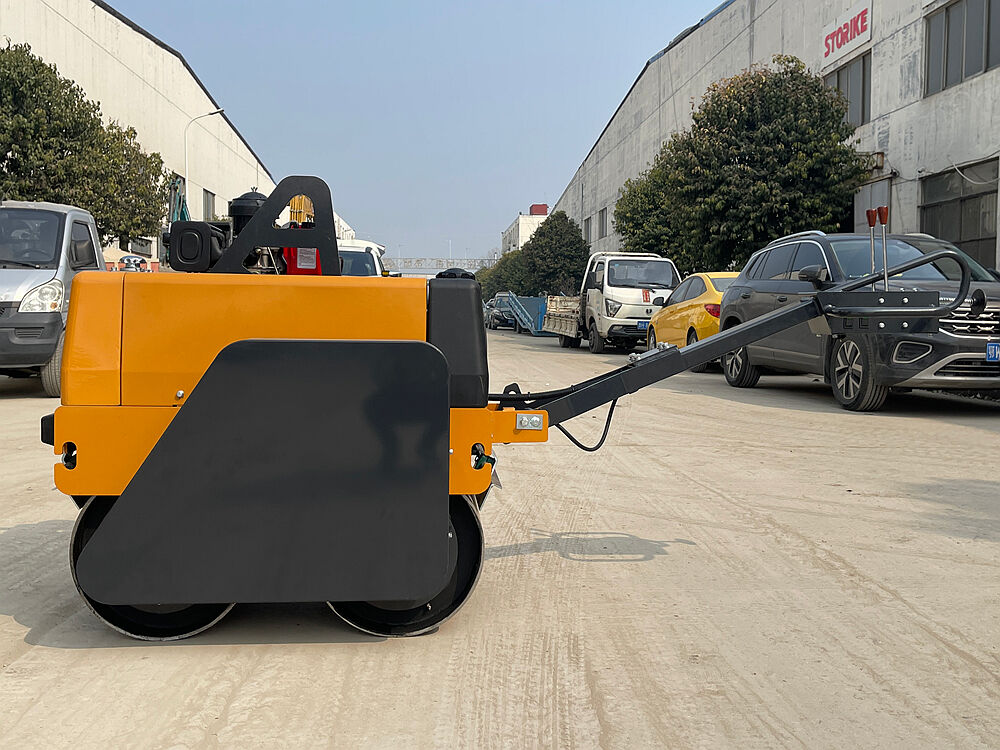

Handheld double drum vibrating roller
FEATURES
- Equipped with famous brand power, quality assurance,superior performance.
- Overall spraying, wide field of vision, beautiful and generous.
- Small working radius,can work in narrow areas.
- Adopt domestic famous brand hydraulic pump, motor,high quality and high stability.
- Lengthened armrest, easy to turn, labor-saving.
- The transmission adopts Japanese FYH Seiko bearings to ensure the working performance of the whole machine.
| Model | SVH60M | SVH60MC | |
| Weight | |||
| Operating weight | kg | 600 | |
| Static line load | n/cm | 45 | |
| Size | |||
| Full width | mm | 780 | |
| Full length (with armrests flat) | mm | 2500 | |
| Full height (armrest upright’ | mm | 1820 | |
| Package dimensions | mm | 1320*840*1050 | |
| Drum width | mm | 600 | |
| Drum diameter | mm | 426 | |
| Start up | Recoil hand pull /electric start | ||
| Drive | |||
| Engine brand | HONDA | CHANGCHAI | |
| Engine model | GX390 | 186F | |
| Engine type | Gasoline four-stroke | Diesel four-stroke | |
| Number of cylinders | 1 | 1 | |
| Output power | kw | 9.7 | 6.6 |
| Rotating speed | rpm | 3600 | 3600 |
| Walking characteristics | |||
| Speed | km/h | 0-4 | |
| Theoretical climbing ability | % | 30 | |
| Brake | |||
| Way of walking | Two-way hydraulic chain drive | ||
| Vibration system | |||
| Vibrating drum | before +after | ||
| vibration frequency | hz | 70 | |
| Vibration amplitude | mm | 0.6 | |
| Exciting force | kn | 30 | |
| Sprinkler system | |||
| Form | Gravity shower | ||
| Capacity | |||
| Fuel capacity | L | 5.9 | 5.5 |
| Lubricant capacity | L | 1.1 | |
| Hydraulic tank capacity | L | 18 | |
| Water tank capacity | L | 22 | |
