SVH70 | 800kg | Vibratory roller
Key Specifications
-Engine:Honda GX390 | Loncin 390FD | Changfa 180F | Changchai 178F
-Power:9.7 | 9.7 | 4.8 | 4.4 KW
-Operating Weight:780 KG
-Exciting Force:30 KN
Our Service
-On-time Delivery
-Quality Assurance (one year)
-Customized Services (logo,packaging,graphic)
Product Description

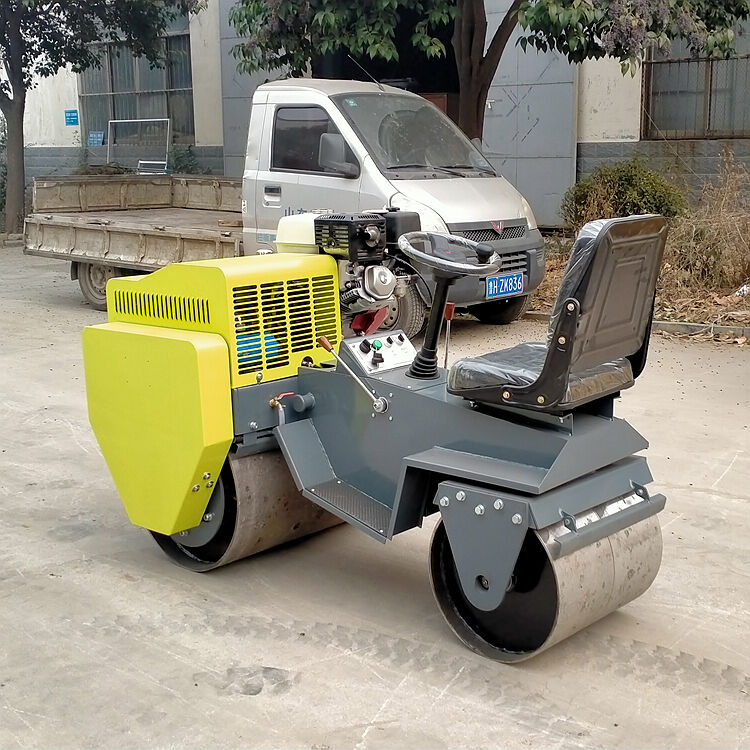

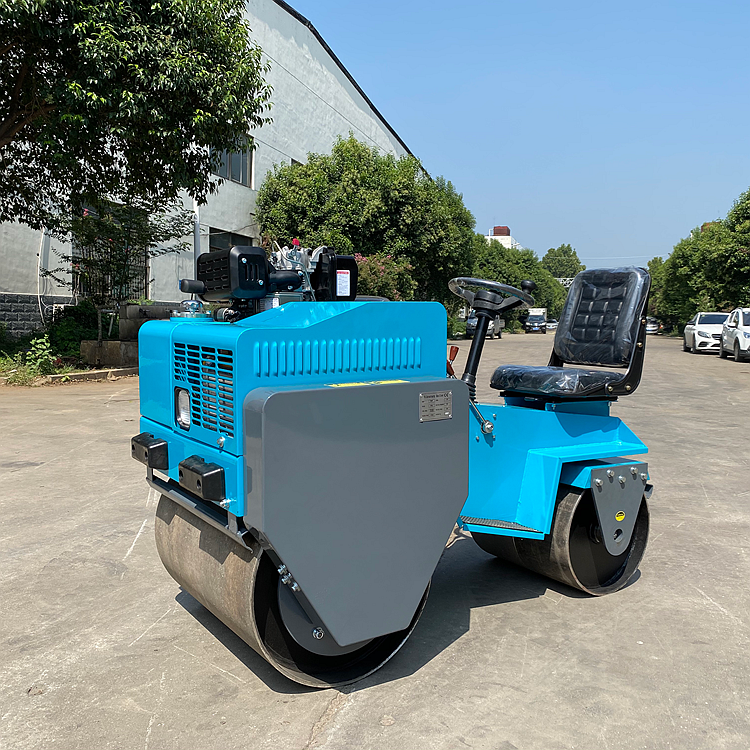

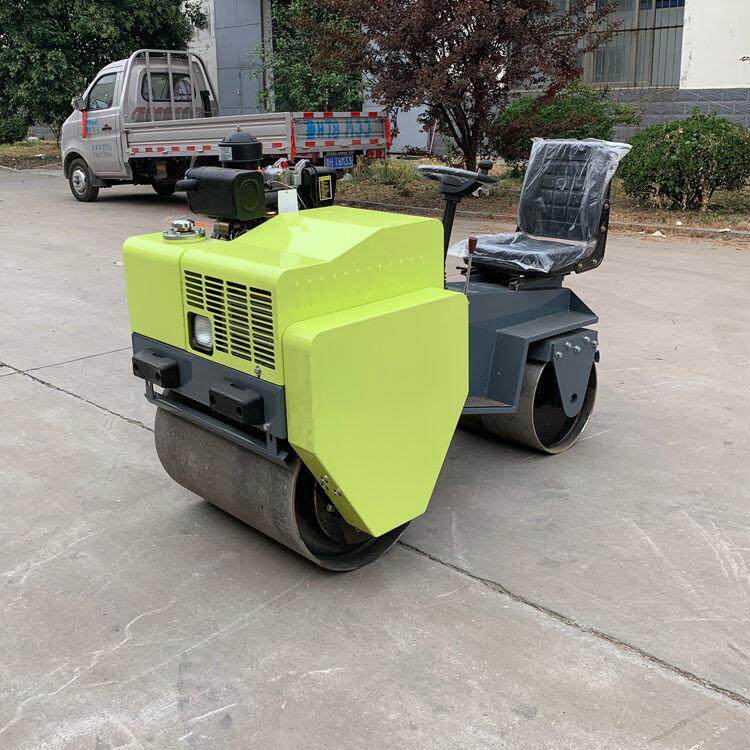

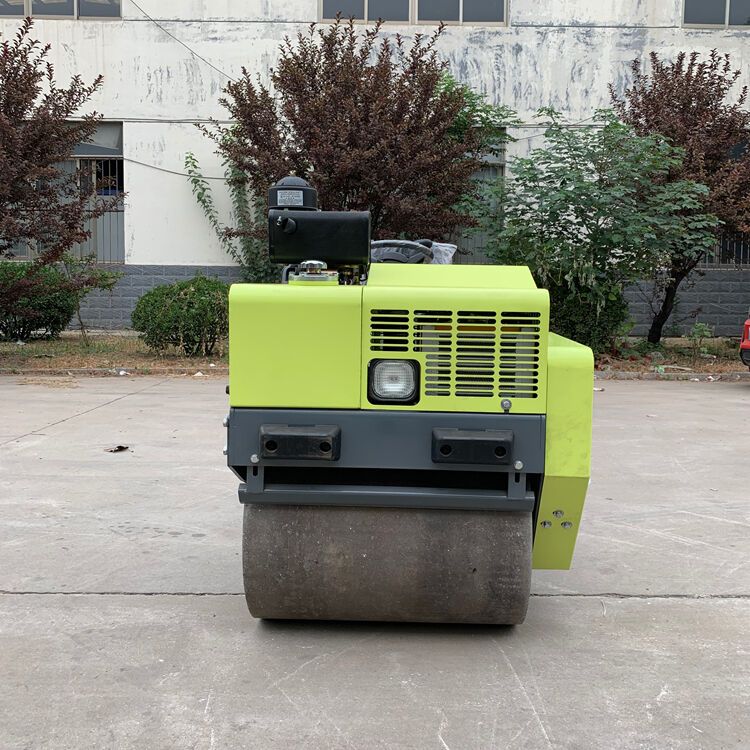

Ride on double drum vibratory roller
FEATURES
- Equipped with famous brand power, quality assurance superior performance
- Ergonomic streamlined body design, wide field of vision beautiful appearance
- Imported hydraulic variable pump and quantitative motor,stepless speed change, walking forward and backward
- The control panel is fully functional, one-key operation
- Front-mounted LED headlights can be constructed at night
- Hydraulic oil air cooling fan heater, fast heat dissipation and long battery life
- The product has passed CE certification
| Model | SVH70 | SVH70C | |||
| Weight | |||||
| Operating weight | kg | 780 | |||
| Static line load | n/cm | 55 | |||
| Size | |||||
| Working width | mm | 875 | |||
| The length of the whole machine | mm | 1550 | |||
| Height of the whole machine | mm | 1210 | |||
| Outside the turning radius | mm | 2300 | |||
| Drum width | mm | 700 front 500 rear | |||
| Drum diameter | mm | 530 front 425 rear | |||
| Wheelbase | mm | 1110 | |||
| Drive | |||||
| Engine brand | HONDA | LONCIN | CHANGFA | CHANGCHAI | |
| Engine model | GX390 | 390FD | 180F | 178F | |
| Engine type | gasoline four-stroke | Four-stroke gasoline air-cooled | diesel four-stroke | Air-cooled four-stroke | |
| Number of cylinders | 1 | ||||
| Output power | kw | 9.7 | 9.7 | 4.8 | 4.4 |
| Rotating speed | rpm | 3600 | 2400 | 3600 | 3600 |
| Electrical equipment | V | 12 | |||
| Drive mode | Two-way hydraulic chain drive | ||||
| Walking characteristics | |||||
| Speed | km/h | 0-6 | |||
| Theoretical climbing ability | % | 30 | |||
| Brake | |||||
| Working brake | Variable displacement piston pump | ||||
| Turn | |||||
| Steering method | Mechanical steerinc | ||||
| Steering system | Rear wheel steering | ||||
| Vibration system | |||||
| Vibrating drum | front | ||||
| Drive form | Mechanical transmission | ||||
| Vibration frequency | hz | 70 | |||
| Vibration amplitude | mm | 0.5 | |||
| Exciting force | kn | 30 | |||
| Sprinkler system | |||||
| Form | Gravity shower | ||||
| Capacity | |||||
| Hydraulic oil capacity | L | 12 | |||
| Fuel capacity | L | 6.5 | 6.5 | 3.5 | 2.7 |
| Water tank capacity | L | 18 | |||
