SVH700 | 550KG | Vibratory Roller
Key Specifications
-Engine:Honda GX270 | Changchai/Changfa CF178
-Power:6.7 | 4.4 KW
-Operating Weight:550 KG
-Exciting Force:30 KG
Our Service
-On-time Delivery
-Quality Assurance (one year)
-Customized Services (logo,packaging,graphic)
Product Description

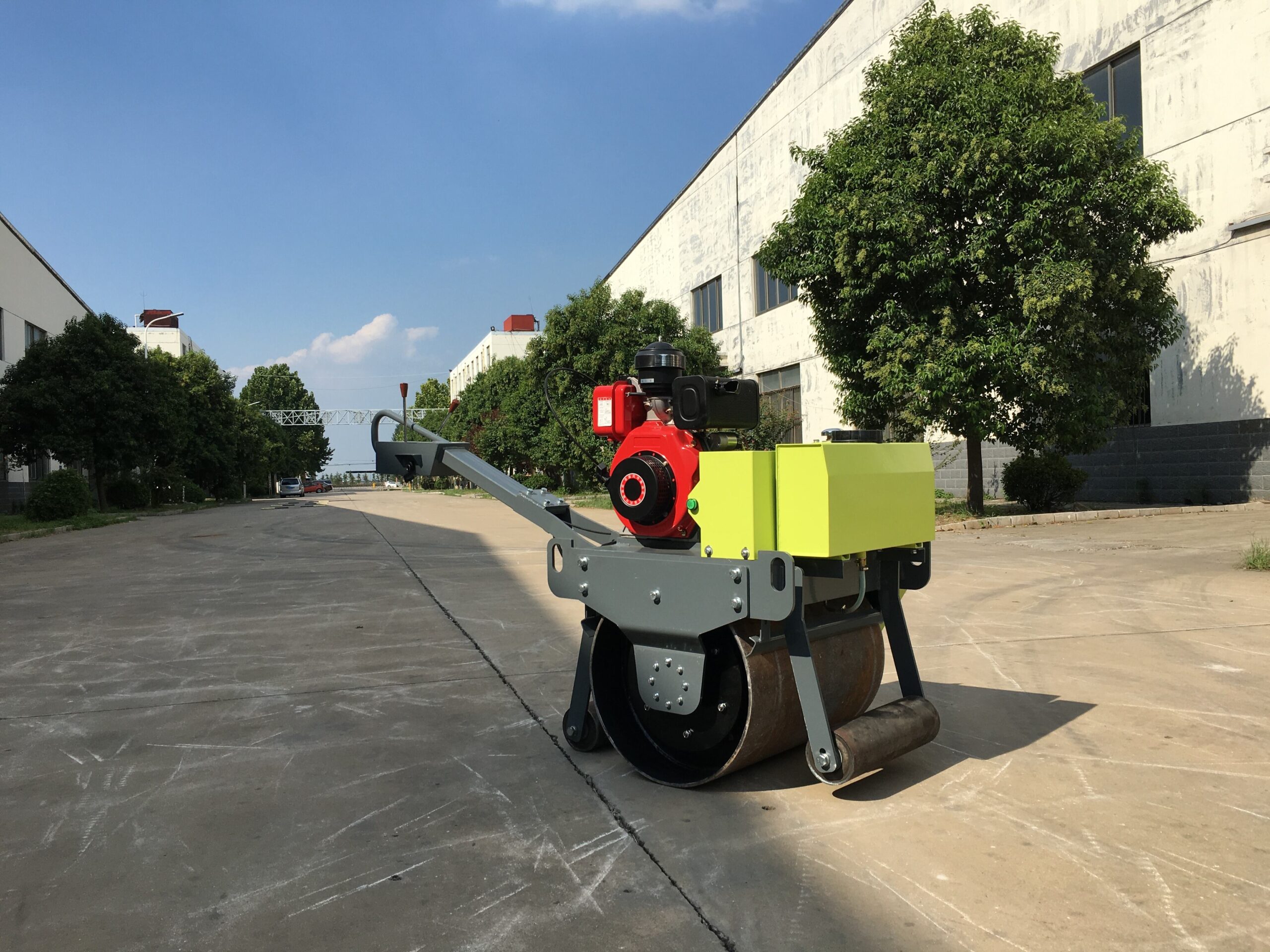

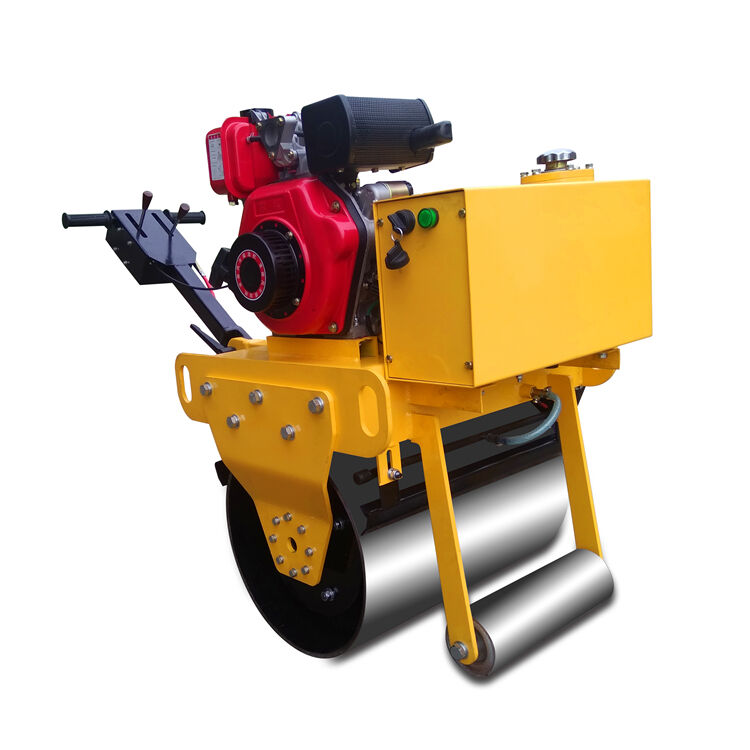

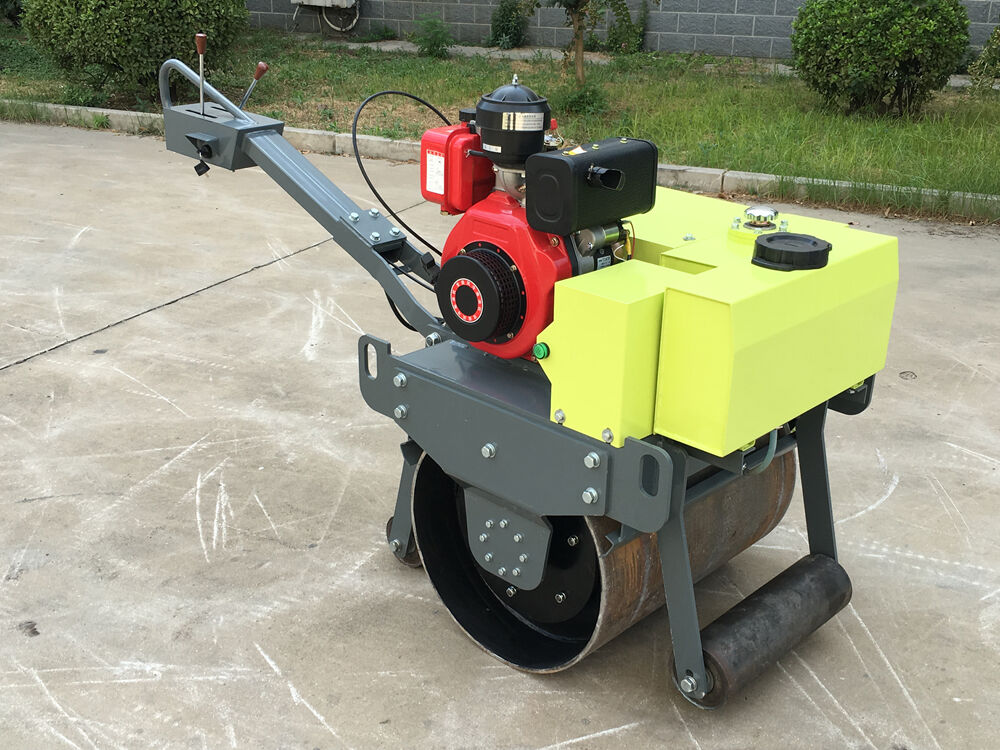

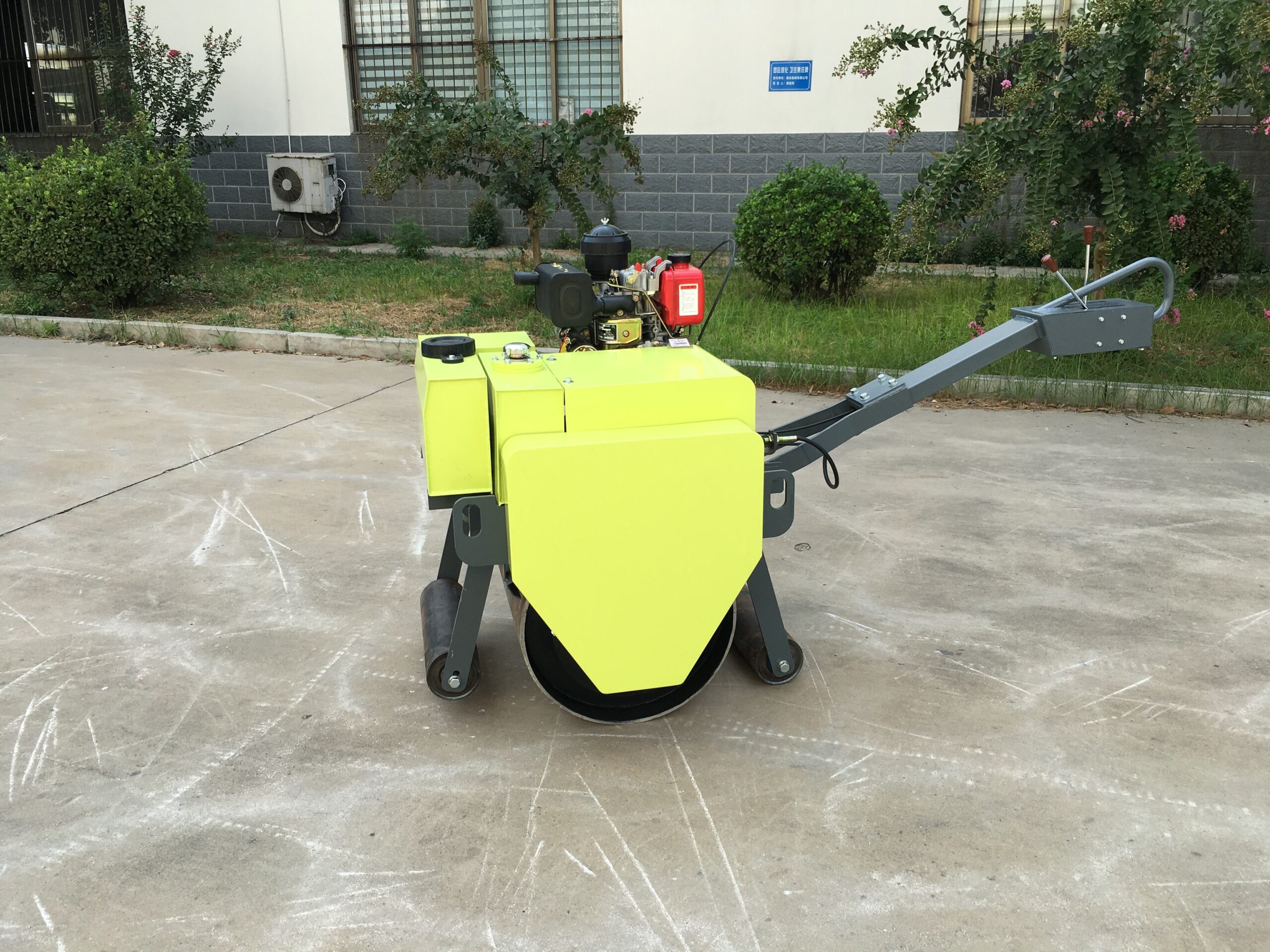

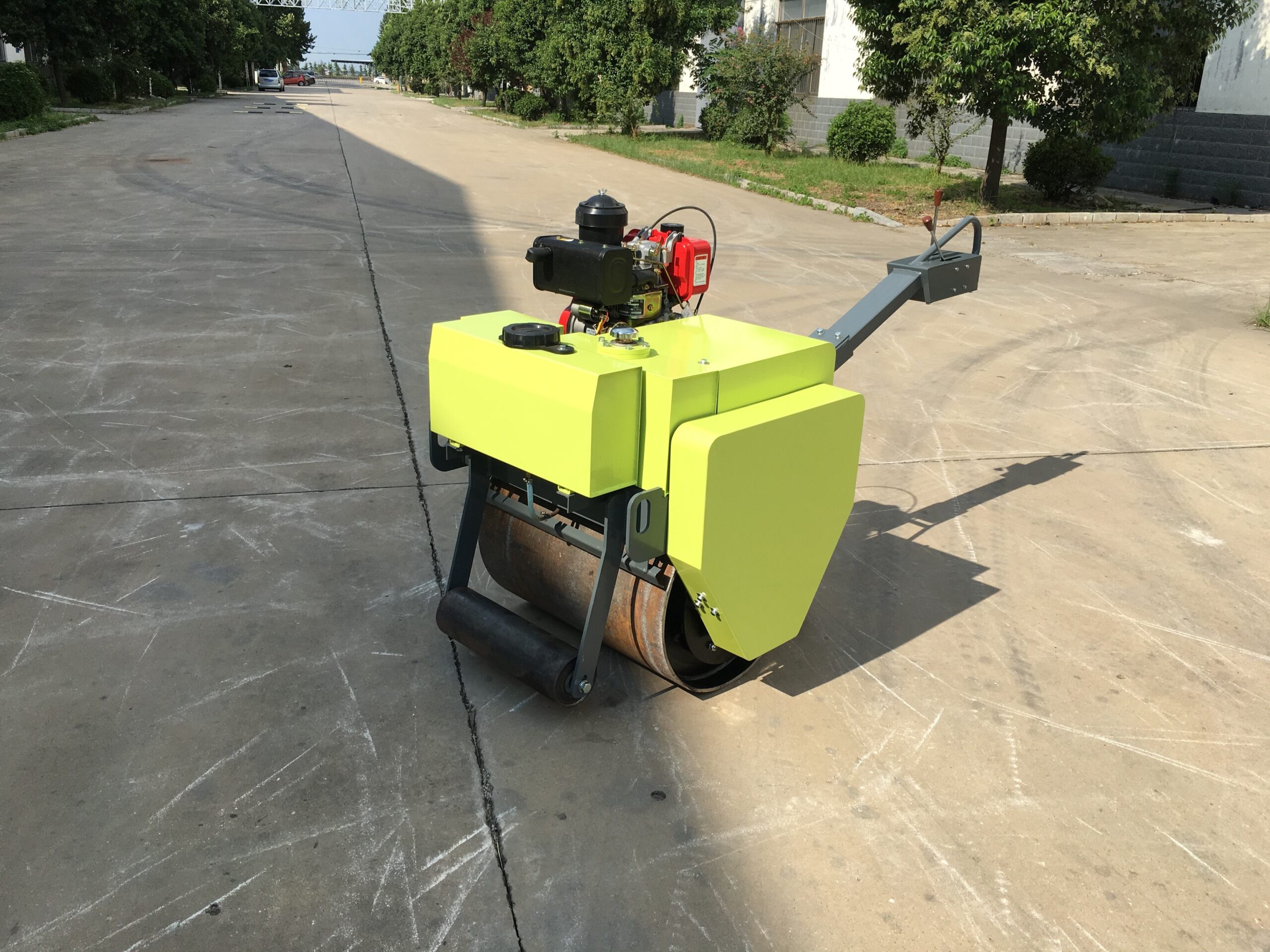

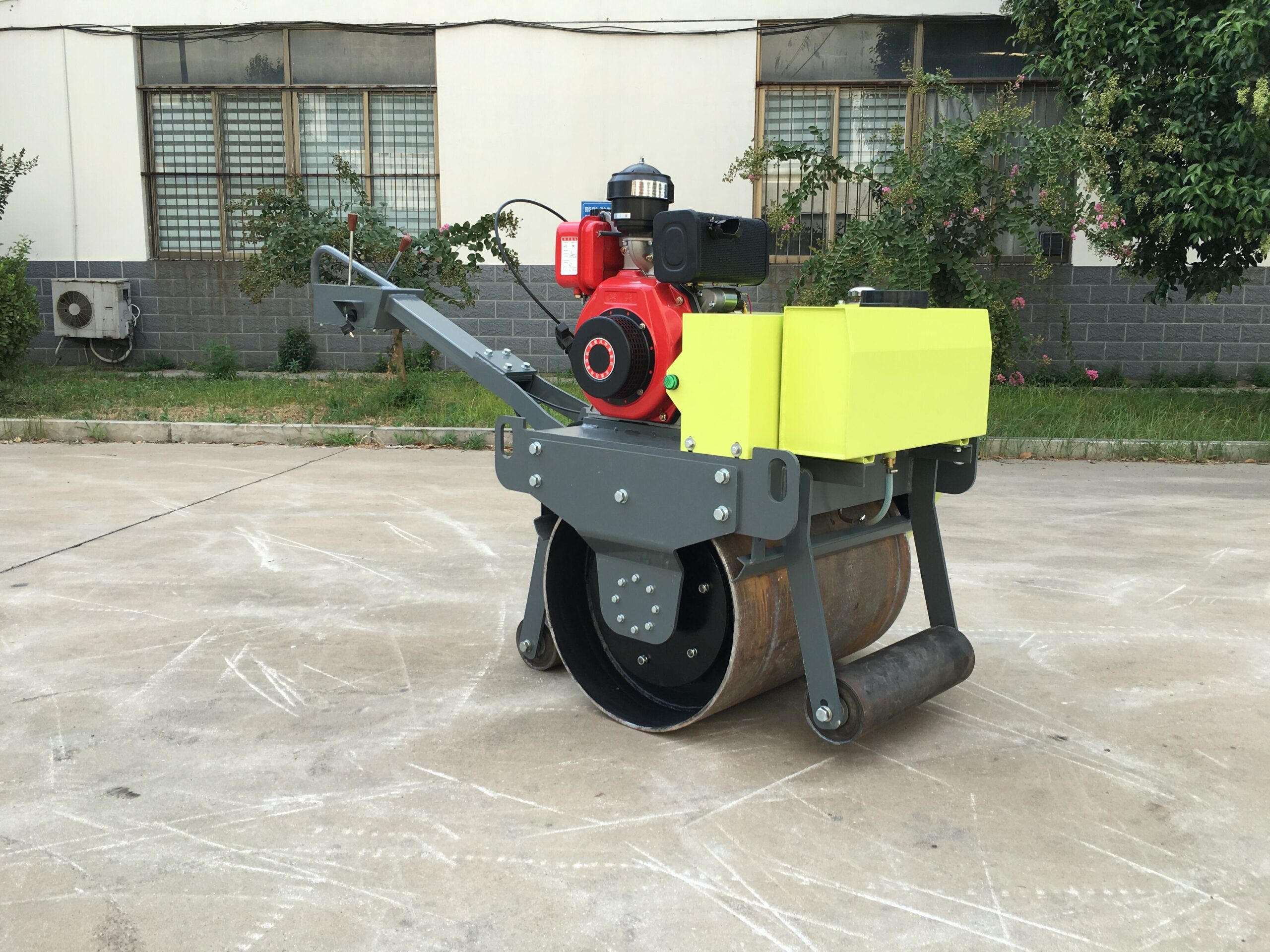

Walk behind single drum vibratoryroadroller
FEATURES
- Equipped with famous brand power,quality assurance superior performance.
- Overall spraying,wide field of vision,beautiful and generous.
- Small working radius,can work in narrow areas.
- Adopt domestic famous brand hydraulic pump,motor,high quality and high stability.
- Lengthened armrest,easy to turn,labor-saving.
- The transmission adopts Japanese nsk Seiko bearings to ensure the working performance of the whole machine.
| Model | SVH700 | SVH700C | |
| Weight | |||
| Operating weight | kg | 550 | |
| Static line load | n/cm | 45 | |
| Size | |||
| Full width | mm | 880 | |
| Full length (with armrests flat) | mm | 2150 | |
| Full height (armrest upright) | mm | 1870 | |
| Package dimensions | mm | 1200*920*1920 | |
| Drum width | mm | 700 | |
| Drum diameter | mm | 530 | |
| Start up | Recoil hand pull Electric start | ||
| Drive | |||
| Engine brand | HONDA | CHANGCHAI/CHANGFA | |
| Engine model | GX270 | CF178 | |
| Engine type | Gasoline four-stroke | Diesel four-stroke | |
| Number of cylinders | 1 | ||
| Output power | kw | 6.7 | 4.4 |
| Rotating speed | rpm | 3600 | 3600 |
| Walking characteristics | |||
| Speed | km/h | 0-4.5 | |
| Theoretical climbing ability | % | 30 | |
| Brake | |||
| Way of walking | Two-way hydraulic chain drive | ||
| Vibration system | |||
| Vibrating drum | Single drum | ||
| Vibration frequency | hz | 70 | |
| Vibration amplitude | mm | 0.6 | |
| Exciting force | kn | 30 | |
| Sprinkler system | |||
| Form | Gravity shower | ||
| Capacity | |||
| Fuel capacity | L | 6.5 | 2.7 |
| Lubricant capacity | L | 1.1 | |
| Hydraulic tank capacity | L | 15 | |
| Water tank capacity | L | 20 | |
